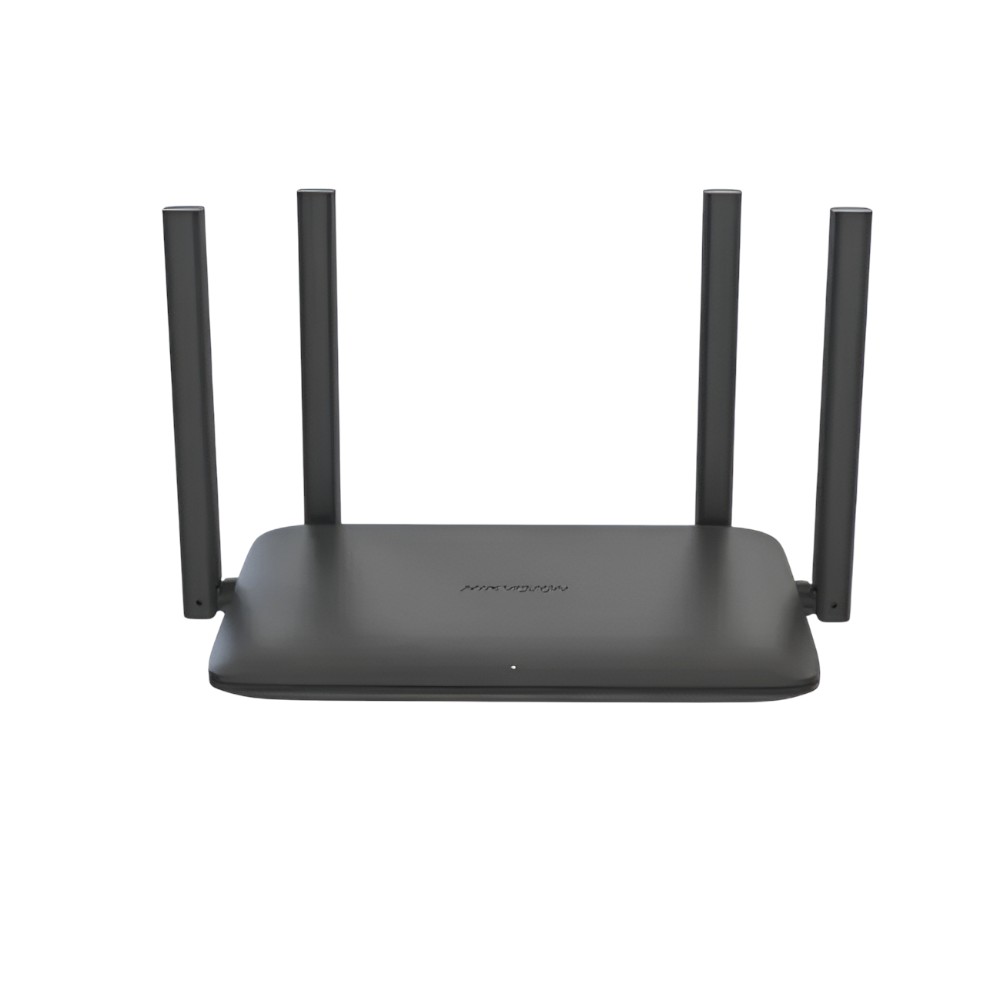

Hikvision DS-3WR15X AX1500 Dual Band Wi-Fi 6 Router

Hikvision DS-3WR15X AX1500 Dual Band Wi-Fi 6 Router

Dual-band Wi-Fi 6 router with up to 1500Mbps speed

4 high-gain antennas (5 dBi) for extended coverage

Supports up to 128 connected devices

Advanced parental controls and VPN support

Compact design with desk or wall mounting options

7 Days Warranty (If there are any Manufacturing Defects)

========================

Features

Dual-band Wi-Fi 6 router with up to 1500Mbps speed

4 high-gain antennas with 5 dBi gain for extended coverage

MU-MIMO and Beamforming for stable multi-device performance

Supports up to 128 connected devices, ideal for smart homes

Advanced security: WPA2-PSK, firewall, and WPS protection

App and web-based control with auto firmware upgrades

Parental controls: speed limit, time control, and URL filtering

VPN support: PPTP and L2TP client modes

Hikvision Mesh technology for seamless network expansion

Compact and mountable design for flexible placement

Specifications

General Parameters

Product Dimensions: 241.3 × 140.8 × 156.3 mm

Package Dimensions: 320 × 265 × 55 mm

Net Weight: 0.245 kg

Gross Weight: 0.790 kg

Operating Temp: 0℃ to 40℃

Storage Temp: -40℃ to 70℃

Mounting: Desk or Wall

Packing Type: Single Pack

Box Content

1500Mbps Wi-Fi 6 Router × 1

Power Adapter × 1

CAT5e Network Cable × 1

Quick Start Guide × 1

Safety & Compliance Info × 1

Wireless Specifications

Standards: IEEE 802.11a/n/ac/ax @5GHz, IEEE 802.11b/g/n @2.4GHz

Frequency Bands: 2.4GHz & 5GHz

Transmit Power: <20dBm (2.4GHz), <23dBm (5GHz)

Antennas: 4 high-gain, 5 dBi

Wireless Range: Up to 1300 ft² / 120 m²

Max Devices: 128 (Recommended: 50)

Max Transmission Rate: 1500 Mbps

Hardware Features

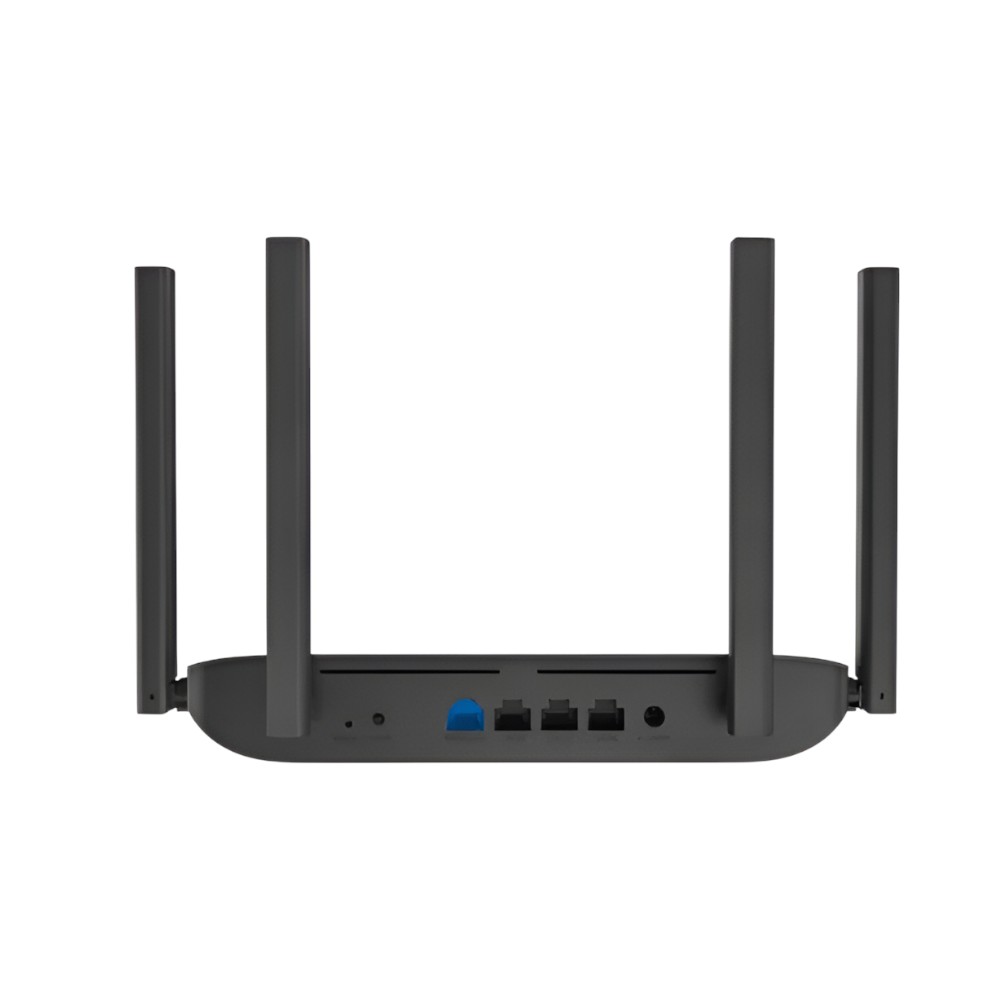

Ports: 1 WAN + 3 LAN (Gigabit)

LED Indicators: Red/Blue with flashing modes

RAM: 128MB DDR2

Flash: 128MB NAND

Power: DC 12V, 1A

Buttons: Reset, WPS

Max Power: ≤10W

Software Features

Security: WPA2-PSK, Firewall, WPS

Management: Web & App (HPP, HC), TR069

Operation Modes: Router, Extender, Access Point

WAN Modes: DHCP, Static IP, PPPoE

IP Versions: IPv4, IPv6

Parental Control: Speed, Time, URL, Profiles

VPN: PPTP, L2TP

NAT Forwarding: Port Mapping, DMZ, UPnP

Other: VLAN/IPTV, Mesh, Wi-Fi Optimization
