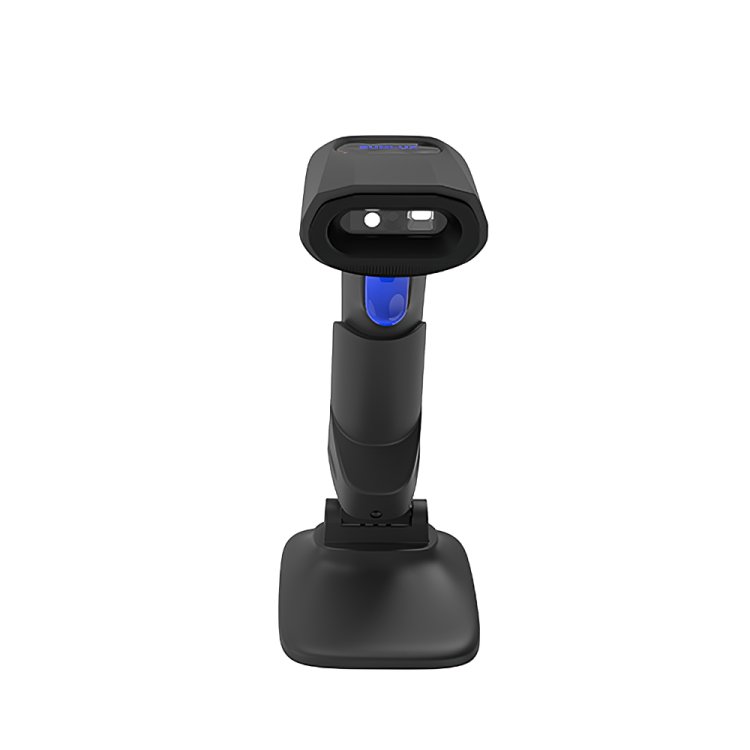

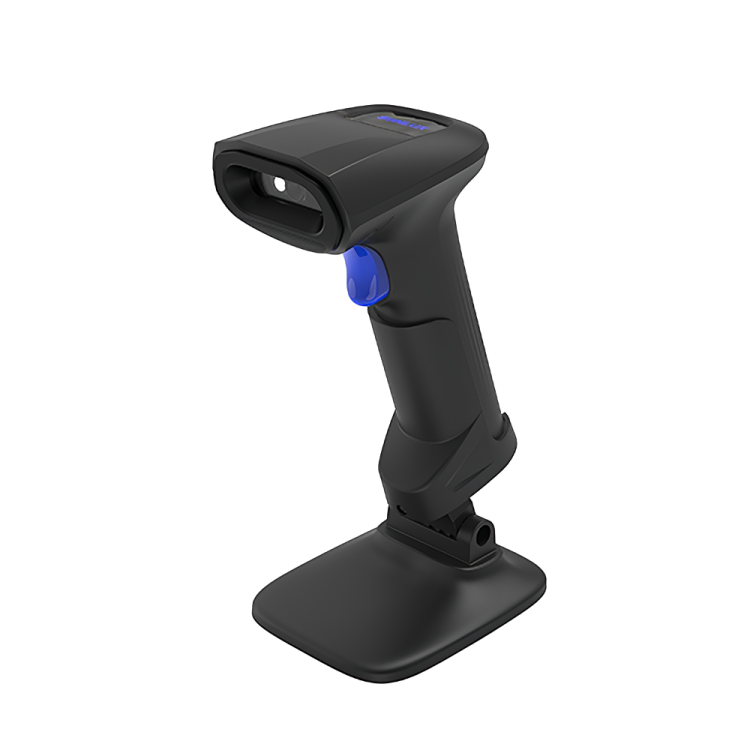

RH10S 2D Wired Barcode Scanner

RH10S 2D Wired Barcode Scanner

Fast, High-Precision 1D/2D Scanning for Commercial Efficiency

Streamline your checkout and inventory management with the RH10S 2D Wired Barcode Scanner. Powered by a high-performance 32-bit ARM processor and advanced CMOS image sensor, this versatile scanner easily reads complex 1D and 2D barcodes from paper, labels, and digital screens. Designed with multiple scan modes and serial command settings, it offers a seamless plug-and-play solution for retail, logistics, and industrial workflows.

Key Features

High-Speed CMOS Engine: Captures barcode images at up to 60 FPS for rapid and accurate scanning even on damaged or poor-quality prints.

1D & 2D Barcode Decoding: Supports all major barcode formats including QR Codes, Data Matrix, PDF417, EAN/UPC, Code 128, and more.

Versatile Scanning Modes: Switch easily between Manual (trigger-activated), Automatic (auto-sense), and Continuous scanning modes.

Dual LED Aiming & Illumination: Equipped with a white LED light source for illumination and a red LED pointer for accurate targeting.

Multiple Connection Options: Supports USB HID, Virtual COM Port, and RS-232 interfaces for universal system compatibility.

Serial Port Command Settings: Allows advanced customization and control through serial port commands.

Screen & Digital Scanning: Effortlessly reads electronic barcodes from mobile phone screens, tablets, and computer monitors.

Ideal Applications

Retail & Supermarkets: Speedy point-of-sale (POS) checkout operations.

Warehouse & Logistics: Efficient inventory control, parcel tracking, and stock management.

Healthcare & Pharmacy: Quick scanning of medical labels, wristbands, and prescription barcodes.

Ticketing & Hospitality: Easy verification of digital QR codes and e-tickets.

Product Specifications

Specification:Details

Model:RH10S

Scanner Type: Wired 2D Barcode Scanner

Image Sensor/CPU:CMOS / 32-bit ARM Processor

Resolution:640 × 480 pixels

Scan Speed:60 Frames Per Second (FPS)

Precision & Depth of Field: ≥ 3mil (Code 128) / 60–300mm (13mil Code39)

Print Contrast: ≥ 15%

Light Source: White LED (illumination) + Red LED (aiming)

Scanning Modes: Manual, Automatic, Continuous

Supported Interfaces: USB HID, Virtual COM, RS-232

1D Decoding Capability: Codabar, Code11, Code39, Code32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code93, Code128, GS1-128, UPC-A, UPC-E, EAN 8, EAN 13, ISBN, ISSN, GS1 DataBar, MSI, Plessey

2D Decoding Capability:QR Code, Data Matrix, PDF417, Micro PDF417, Aztec Code, Hanxin Code, Maxicode

Dimensions & Weight:170.9 × 64.4 × 86.8 mm / Scanner: 175g, Base: 175g

Warranty:1-Year Replacement Warranty
